32185 | AMP

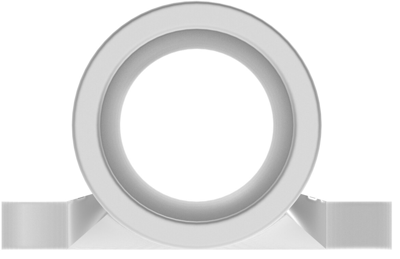

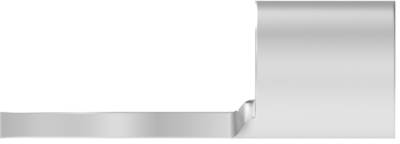

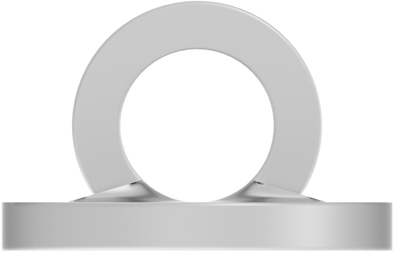

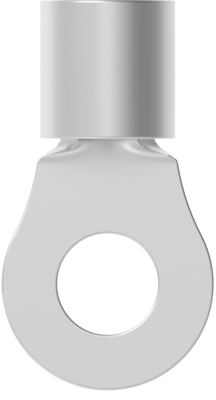

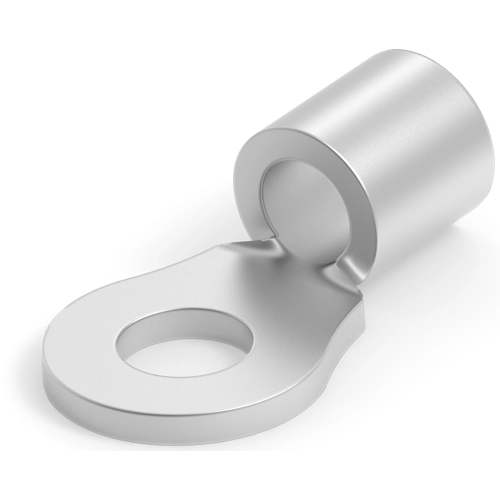

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16, 2.84 mm, M2.5, metal, 32185
Order No.: 39P8322
EAN: 4099889600759
MPN:
32185
Unit Price (€ / pc.)
0.1404 € *
Available in 5 Days: 22,081 pcs. - if ordered today
Total Price:
280.84 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1404 €
4000 pcs.
0.1392 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 32185, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .492 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 2.84 mm, Tongue Thickness: .84 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Carton, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 1.25-2.0 mm² | |
| AWG cross-section | AWG 16 | |
| Material | copper, tin-plated | |
| Hole diameter | 2.84 mm | |
| Isolated | No | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
