321827 | AMP

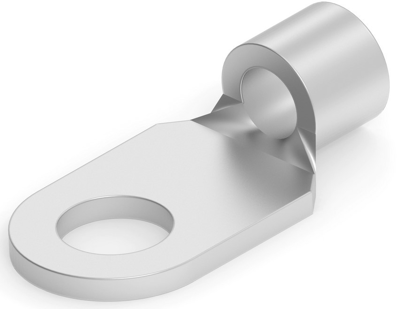

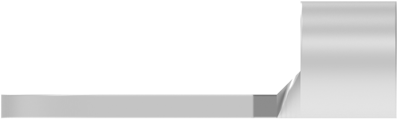

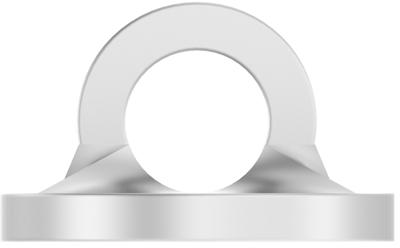

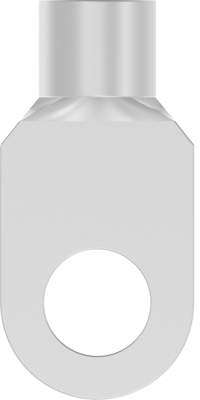

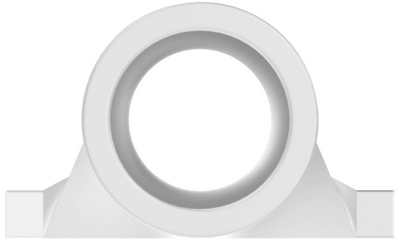

Uninsulated ring cable lug, 1.67-4.65 mm², AWG 14 to 12, 4.34 mm, M4, metal, 321827
Order No.: 39P8672
EAN: 4099889602999
MPN:
321827
Unit Price (€ / pc.)
0.9996 € *
Available in 5 Days: 4,825 pcs. - if ordered today
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9996 €
10 pcs.
0.9282 €
25 pcs.
0.8568 €
50 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 321827, AMP
Shape Description: RING-051, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.389 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 14 – 12 AWG, Wire Size: 1.67 – 4.65 mm², Wire Size: 3260 – 8230 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 14 to 12 | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 1.67-4.65 mm² | |
| Colour | metal | |
| Hole diameter | 4.34 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
