321808 | AMP

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 6.35 mm, M6, red, 321808

Order No.: 71P7855
EAN: 4099891603618
MPN:
321808
Series: PIDG

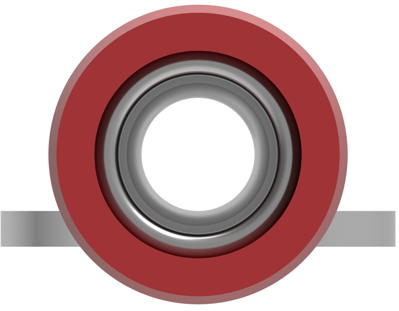

321808 AMP Cable Lugs Image 1

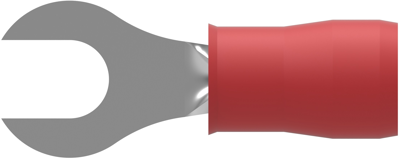

321808 AMP Cable Lugs Image 2

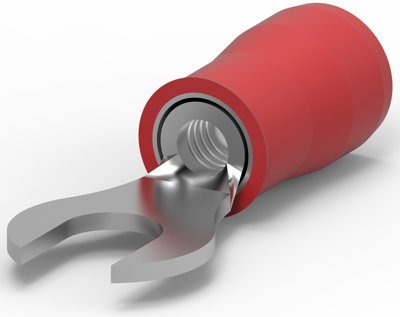

321808 AMP Cable Lugs Image 3

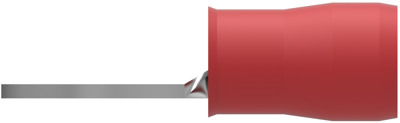

321808 AMP Cable Lugs Image 4

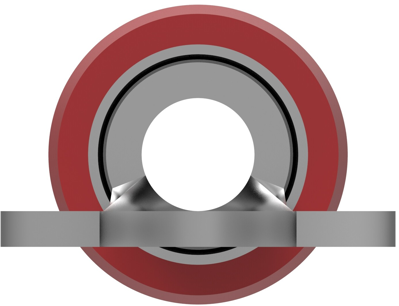

321808 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 0 pcs.
Available in 5 Days: 4,699 pcs.
Leadtime: 26 Weeks **
Total Price:
240.98 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6065 €
600 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

Spade cable lug, 321808, AMP

M6, Insulation support, Slotted, Closed, Straight, Tin, Box.

Technical specifications
Version Gabelkabelschuh
AWG cross-section AWG 22 bis 16
Colour rot
Thread size M6
Material Insulation PVC
Isolated Yes
Cable cross-section 0,3-1,42 mm²
Hole diameter 6.35 mm
Material Kupfer, verzinnt
max. operating temperature 105 °C
shrinkable tubing Yes
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
