321576 | AMP
Uninsulated ring cable lug, 10.5-16.8 mm², AWG 6, 6.73 mm, M6, metal, 321576
Order No.: 39P8504
EAN: 4099889601770
MPN:
321576
Unit Price (€ / pc.)
10.2578 € *
Available in 5 Days: 981 pcs. - if ordered today
Total Price:
10.26 € *
Price list
Quantity
Price per unit*
1 pcs.
10.2578 €
10 pcs.
9.5200 €
25 pcs.
8.8893 €
50 pcs.
8.0801 €
*incl. VAT plus shipping costs
Subject to prior sale

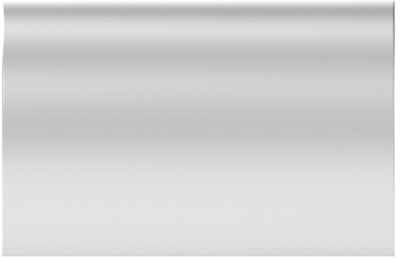

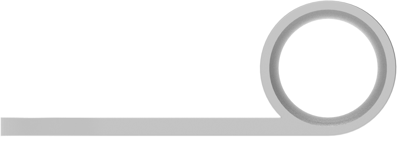

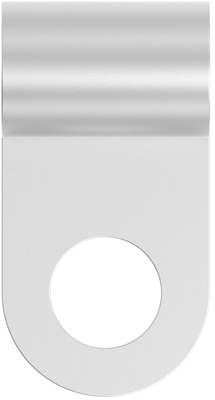

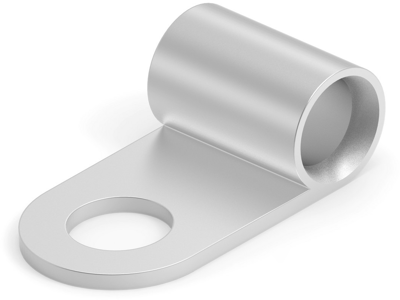

Ring cable lug, 321576, AMP
Shape Description: RING-090, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 10 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 6 AWG, Wire Size: 10.5 – 16.8 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 10.5-16.8 mm² | |
| AWG cross-section | AWG 6 | |
| Material | copper, tin-plated | |
| Hole diameter | 6.73 mm | |
| Isolated | No | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
