321064 | AMP
Uninsulated ring cable lug, 26.7-42.4 mm², AWG 2, 8.33 mm, M8, metal, 321064
Order No.: 39P8496
EAN: 4099889601701
MPN:
321064
Unit Price (€ / pc.)
7.8540 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
7.85 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8540 €
10 pcs.
7.2947 €
25 pcs.
6.8068 €
50 pcs.
6.1880 €
*incl. VAT plus shipping costs
Subject to prior sale

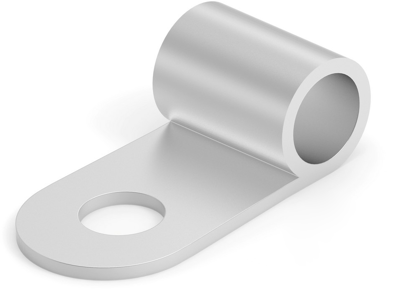

Ring cable lug, 321064, AMP
Shape Description: RING-091, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 13.172 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 26.7-42.4 mm² | |
| max. operating temperature | 170 °C | |
| Isolated | No | |
| Hole diameter | 8.33 mm | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 2 | |
| Colour | metal | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
