321059 | AMP

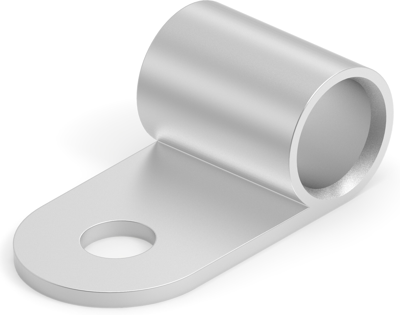

Uninsulated ring cable lug, 16.8-26.7 mm², AWG 4, 5 mm, metal, 321059
Order No.: 39P8500
EAN: 4099889601749
MPN:
321059
Unit Price (€ / pc.)
7.9611 € *
Available in 5 Days: 692 pcs. - if ordered today
Total Price:
7.96 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9611 €
10 pcs.
7.3899 €
25 pcs.
6.9020 €
50 pcs.
6.2713 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 321059, AMP
Shape Description: RING-090, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 8.634 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 4 AWG, Wire Size: 16.8 – 26.7 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 16.8-26.7 mm² | |
| AWG cross-section | AWG 4 | |
| Material | copper, tin-plated | |
| Hole diameter | 5 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
