321045 | AMP

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 6.73 mm, M6, blue, 321045

Order No.: 39P3586
EAN: 4099889594256
MPN:
321045
Series: PIDG

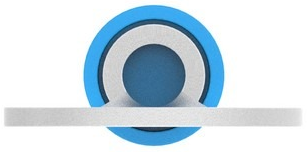

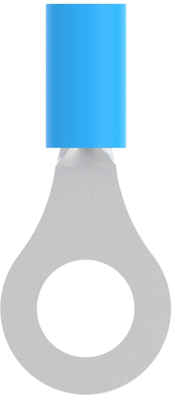

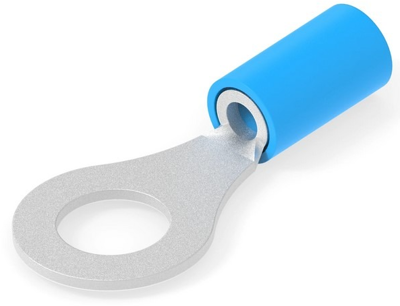

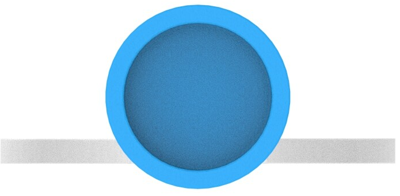

321045 AMP Cable Lugs Image 1
321045 AMP Cable Lugs Image 2
321045 AMP Cable Lugs Image 3
321045 AMP Cable Lugs Image 4
321045 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5236 € *
Available in 5 Days: 26,386 pcs. - if ordered today
Total Price:
2.62 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5236 €
10 pcs.
0.4879 €
25 pcs.
0.4522 €
50 pcs.
0.4165 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 321045, AMP

Regular Wire, Closed Barrel, Straight, 300 V, M6, 2050 – 5180 CMA

Technical Data

    Version: Ring cable lug
  • AWG cross-section AWG 16 to 14
  • Colour: blue
  • Material: Copper, tin-plated
  • Cable cross-section 1.0 to 2.6 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 16 to 14
Version ring cable lug
Isolated Yes
Cable cross-section 1.25-2.0 mm²
Colour blue
Hole diameter 6.73 mm
Material Insulation nylon
max. operating temperature 105 °C
Thread size M6
Logistics
Property Value
Country of origin CN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
