321013 | AMP

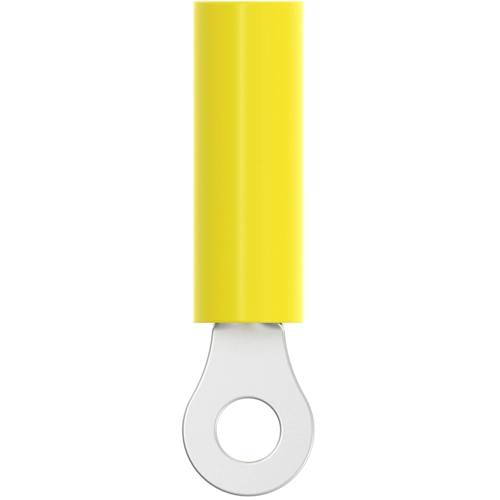

Insulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 3.51 mm, yellow, 321013
Unit Price (€ / pc.)
0.5712 € *
Available: 0 pcs.
Available in 5 Days: 861 pcs.
Leadtime: 1 Week **
Total Price:
0.57 € *
Price list
Quantity
Price per unit*
200 pcs.
0.5712 €
900 pcs.
0.4760 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 321013, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #0, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .23 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: -40 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | yellow | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.12-0.4 mm² | |
| Hole diameter | 3.51 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
