320862 | AMP
Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, M4, blue, 320862
Unit Price (€ / pc.)
0.5593 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5593 €
10 pcs.
0.5236 €
25 pcs.
0.4879 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

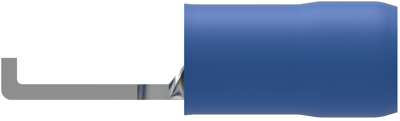

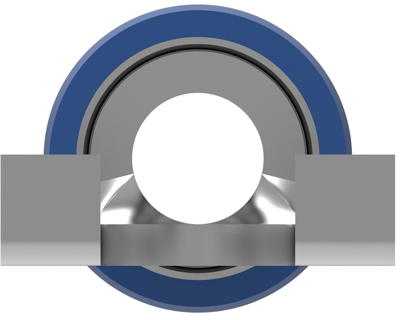

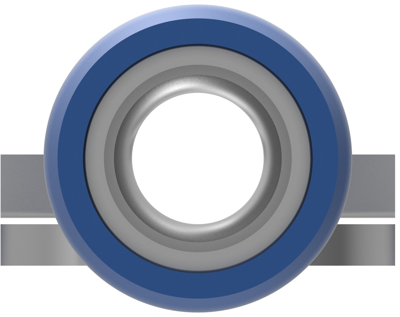

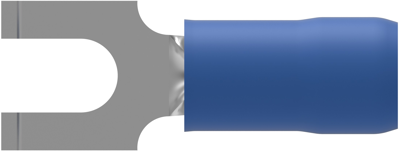

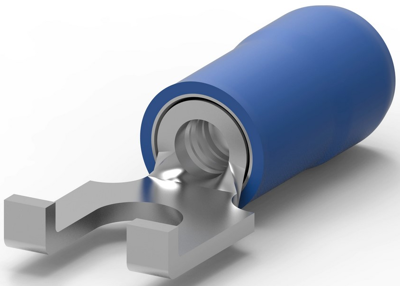

Fork cable lug, 320862, AMP
Shape Description: SPADE-024, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .96 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Flange Tongue, Ring & Spade Terminal Orientation: Flanged,Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .84 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | blue | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.25-2.0 mm² | |
| Version | forked cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| AWG cross-section | AWG 16 to 14 | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
