320815 | AMP
Uninsulated rectangular contact tab with hole, 1.04-2.62 mm², AWG 16 to 14, 3.68 mm, M3.5, 320815
Order No.: 71P7755
EAN: 4099891603533
MPN:
320815
Unit Price (€ / pc.)
1.2852 € *
Available in 5 Days: 7,225 pcs. - if ordered today
Total Price:
257.04 € *
Price list
Quantity
Price per unit*
200 pcs.
1.2852 €
400 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale

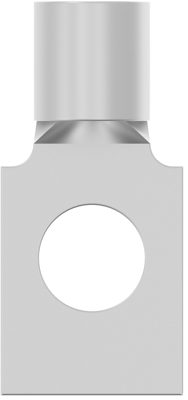

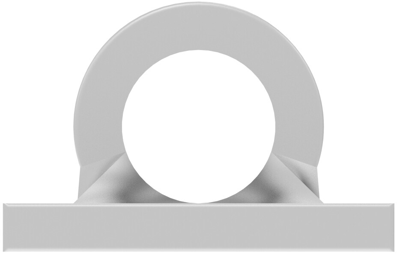

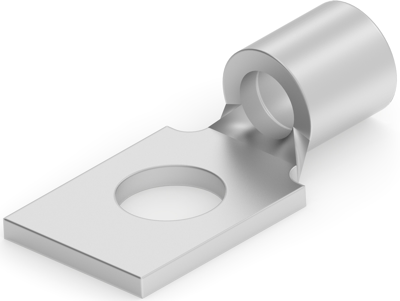

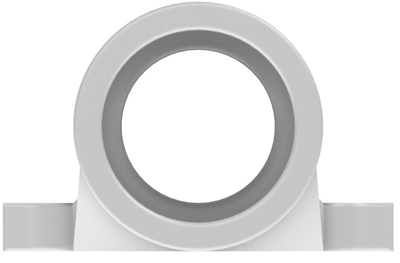

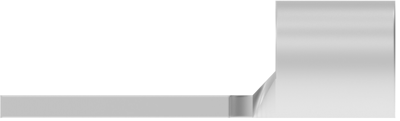

Rectangular cable lug, 320815, AMP
Ring terminal & Spade terminal, Rectangular tongue, 16-14 AWG Wire size, 1.04-2.62 mm² Wire size, 2050-5180 CMA Wire size, Stud size M3.5/#6.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rectangular contact tab with hole | |
| max. operating temperature | 170 °C | |
| shrinkable tubing | No | |
| Cable cross-section | 1.04-2.62 mm² | |
| AWG cross-section | AWG 16 to 14 | |
| Material | copper, tin-plated | |
| Hole diameter | 3.68 mm | |
| Isolated | No | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
