320748 | AMP

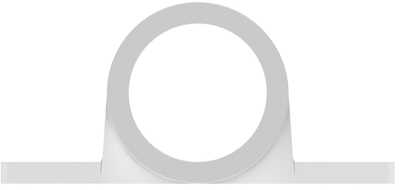

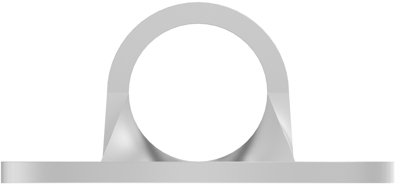

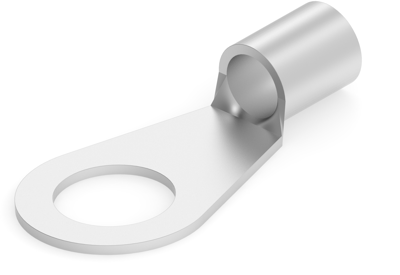

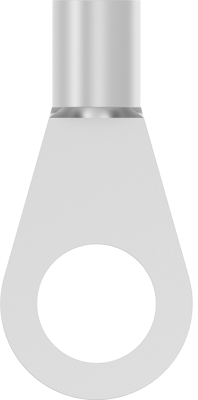

Uninsulated ring cable lug, 42.4-60.6 mm², AWG 1, 19.83 mm, metal, 320748
Order No.: 39P8231
EAN: 4099889600087
MPN:
320748
Unit Price (€ / pc.)
8.0087 € *
Available in 5 Days: 459 pcs. - if ordered today
Cable lug, 320748, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 3/4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 23.173 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0 AWG, Wire Size: 42.4 – 60.6 mm², Wire Size: 83700 – 119500 CMA, Stud Diameter: 19.83 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 1 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 42.4-60.6 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Hole diameter | 19.83 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
