320629 | AMP

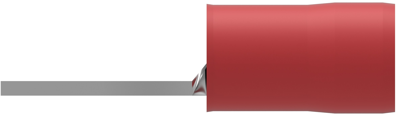

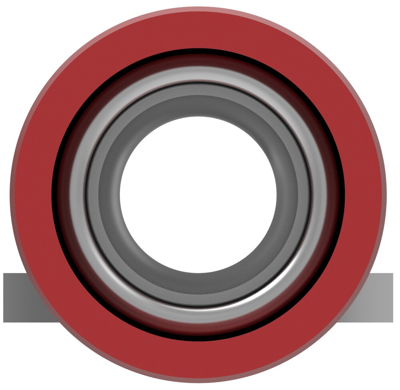

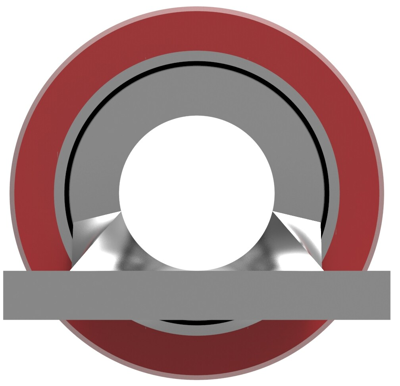

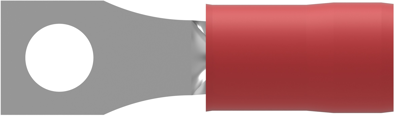

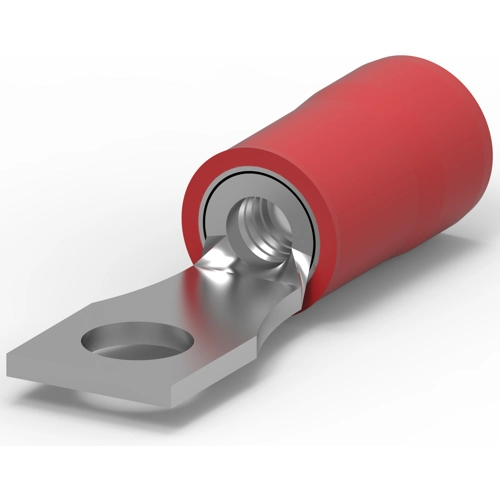

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.51 mm, M3.5, red, 320629
Unit Price (€ / pc.)
1.4280 € *
Available in 5 Days: 5,827 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4280 €
10 pcs.
1.3209 €
25 pcs.
1.2257 €
50 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectangular cable lug, 320629, AMP
Ring terminal, Rectangular tongue, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| shrinkable tubing | Yes | |
| Colour | red | |
| Hole diameter | 3.51 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.3-1.42 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | nylon | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
