320138 | AMP

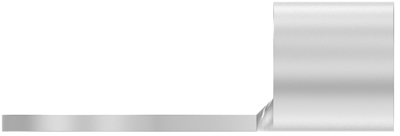

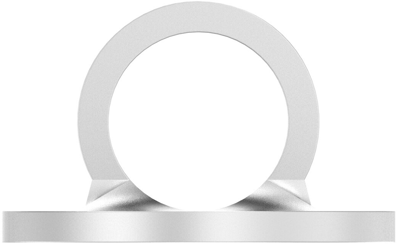

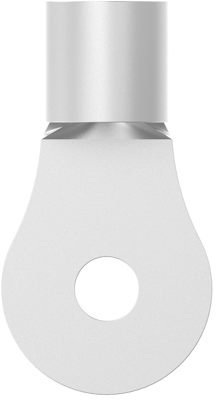

Uninsulated ring cable lug, 26.2-42.4 mm², 6.73 mm, M6, metal, 320138
Order No.: 39P8239
EAN: 4099889600155
MPN:
320138
Unit Price (€ / pc.)
2.5704 € *
Available in 5 Days: 412 pcs. - if ordered today
Cable lug, 320138, AMP
Shape Description: RING-050, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 17.121 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 26.2 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 26.2-42.4 mm² | |
| Thread size | M6 | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Hole diameter | 6.73 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
