31906 | AMP

Insulated 27400203, 1-2.5 mm², AWG 16 to 14, 6.7 mm, M6, blue, 31906

Order No.: 39P3506
MPN:
31906
TERMINAL,PIDG R 16-14 1/4
Series: PIDG

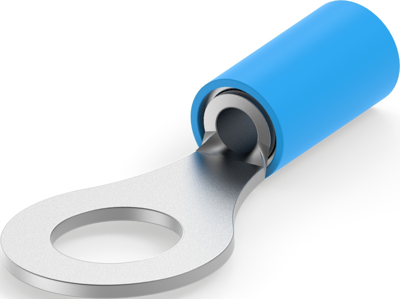

31906 AMP Cable Lugs Image 1

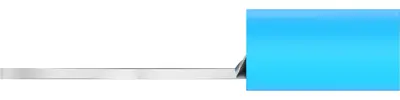

31906 AMP Cable Lugs Image 2

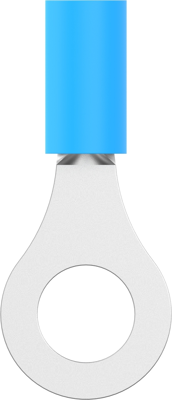

31906 AMP Cable Lugs Image 3

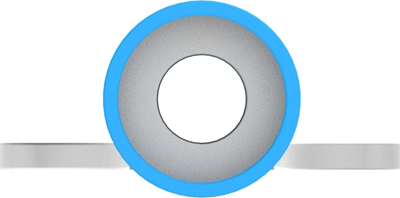

31906 AMP Cable Lugs Image 4

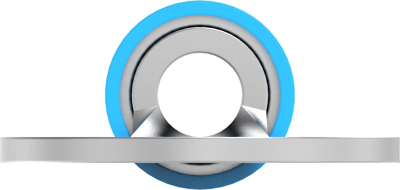

31906 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.0472 € *
Available in 5 Days: 9,363 pcs. - if ordered today
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
10 pcs.
0.9639 €
50 pcs.
0.8925 €
100 pcs.
0.8330 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 31906, AMP

Closed Ring Tongue Terminal, 16 - 14 AWG, M6 Stud, 6.7 mm Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated.

Technical specifications
Filter Property Value
Isolated Yes
Material copper
Cable cross-section 1-2.5 mm²
max. operating temperature 105 °C
Material Insulation PVC
Hole diameter 6.7 mm
AWG cross-section AWG 16 to 14
Colour blue
Version ring cable lug
Thread size M6
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
