31808 | AMP

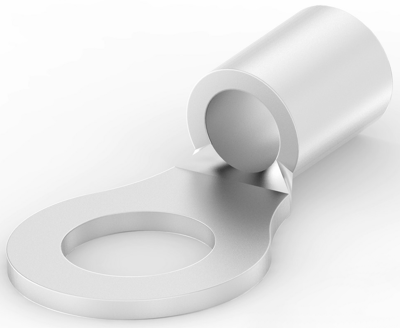

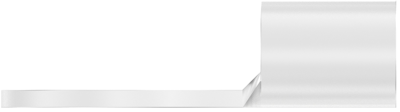

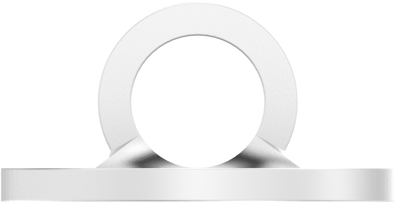

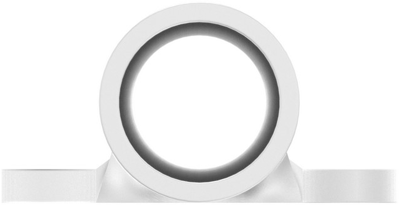

Uninsulated ring cable lug, 8.0 mm², AWG 8, 7.92 mm, M8, metal, 31808
Order No.: 39P8732
EAN: 4099889603552
MPN:
31808
Unit Price (€ / pc.)
1.3090 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
6.55 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3090 €
10 pcs.
1.2138 €
25 pcs.
1.1305 €
50 pcs.
1.0234 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 31808, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 4.196 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: 1.3 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 8 | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 8.0 mm² | |
| Colour | metal | |
| Hole diameter | 7.92 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
