31425 | AMP

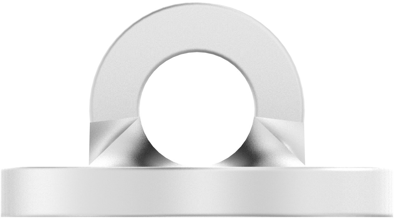

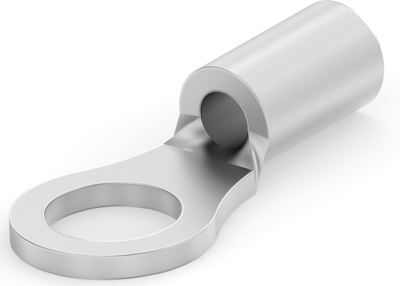

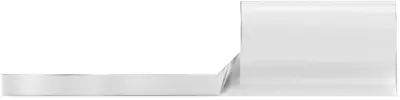

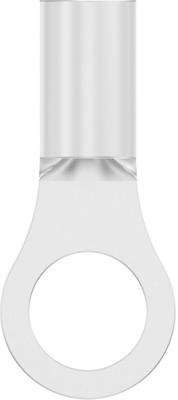

Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 2.36 mm, M2, metal, 31425
Order No.: 39P8331
EAN: 4099889600827
MPN:
31425
Unit Price (€ / pc.)
0.1428 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 25 Weeks **
Total Price:
285.60 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1428 €
4000 pcs.
0.1226 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 31425, AMP
Shape Description: RING-049, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .089 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: .46 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 26 to 22 | |
| Hole diameter | 2.36 mm | |
| Cable cross-section | 0.12-0.4 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Thread size | M2 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
