31165 | AMP
Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16, 7.92 mm, metal, 31165
Unit Price (€ / pc.)
0.1642 € *
Available in 5 Days: 16,529 pcs. - if ordered today
Total Price:
328.44 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1642 €
4000 pcs.
0.1607 €
*incl. VAT plus shipping costs
Subject to prior sale

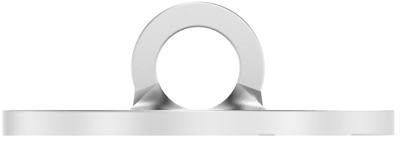

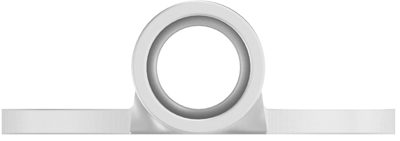

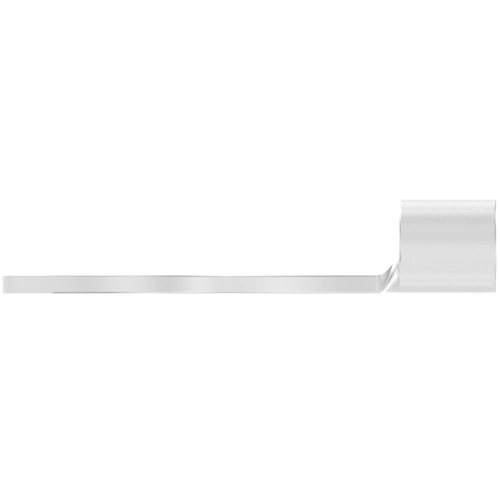

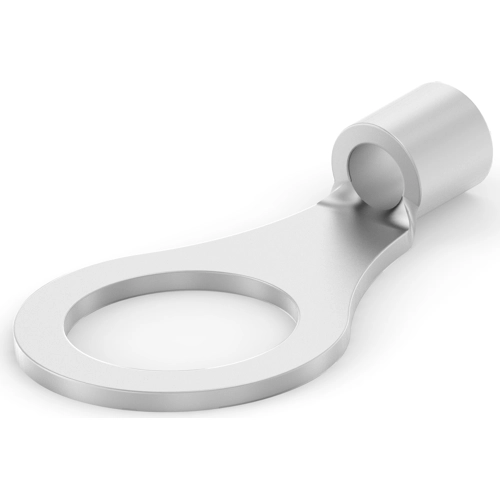

Ring cable lug, 31165, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.951 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Hole diameter | 7.92 mm | |
| Colour | metal | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
