31112 | AMP
Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 3.68 mm, metal, 31112
Unit Price (€ / pc.)
0.2523 € *
Available in 5 Days: 16,691 pcs. - if ordered today

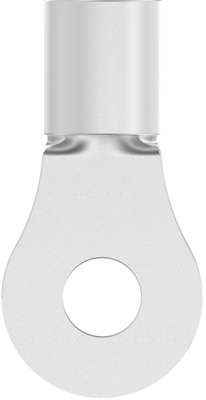

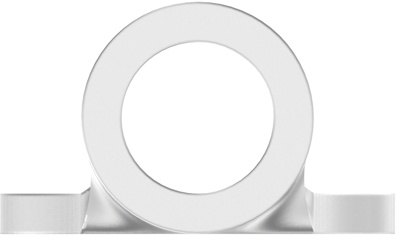

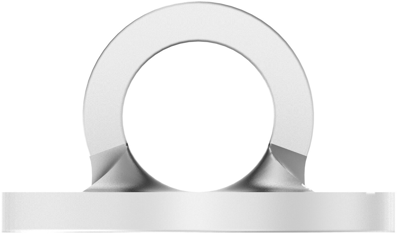

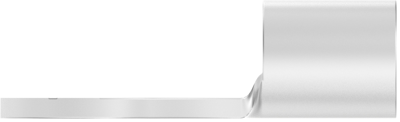

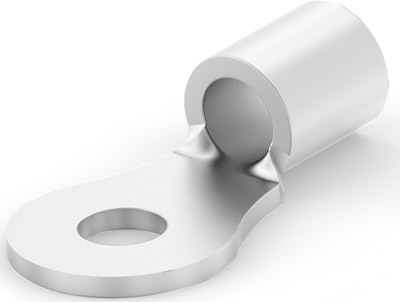

Cable lug, 31112, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.6 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .99 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Carton, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Hole diameter | 3.68 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | ring cable lug | |
| Isolated | No | |
| max. operating temperature | 170 °C | |
| AWG cross-section | AWG 12 to 10 | |
| Material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
