30692 | AMP

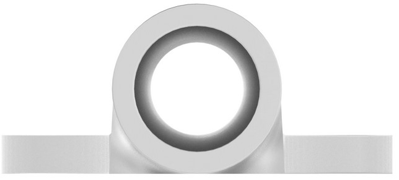

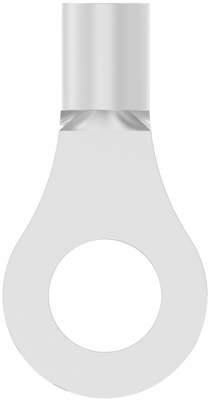

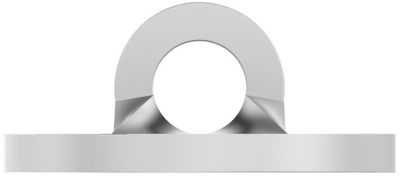

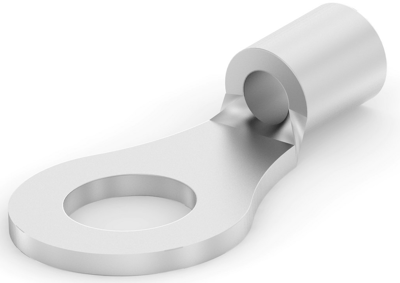

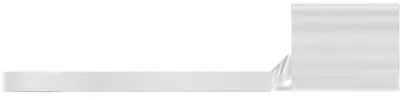

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22, 4.34 mm, M4, metal, 30692
Order No.: 39P8313
EAN: 4099889600674
MPN:
30692
Unit Price (€ / pc.)
0.2332 € *
Available in 5 Days: 7,430 pcs. - if ordered today
Total Price:
23.32 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2332 €
250 pcs.
0.2154 €
500 pcs.
0.1999 €
1000 pcs.
0.1809 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 30692, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .619 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| Cable cross-section | 0.3-1.42 mm² | |
| Version | ring cable lug | |
| AWG cross-section | AWG 22 | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Hole diameter | 4.34 mm | |
| Isolated | No | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
