277143-1 | AMP

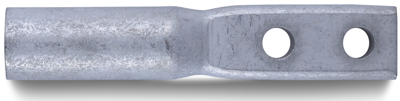

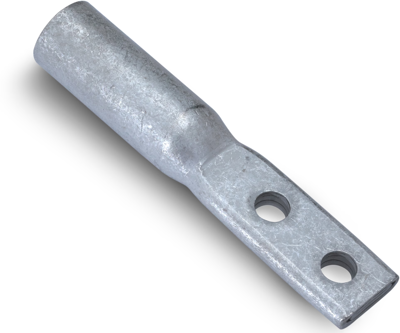

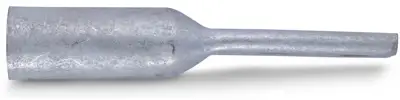

Uninsulated rectangular contact tab with hole, 100-125 mm², 8.3 mm, M8, 277143-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
49.7896 € *
Available in 12 Days: 647 pcs. - if ordered today
Total Price:
49.79 € *
Price list
Quantity
Price per unit*
1 pcs.
49.7896 €
5 pcs.
47.5643 €
10 pcs.
45.5294 €
25 pcs.
43.6492 €
*incl. VAT plus shipping costs
Subject to prior sale
Rectangular cable lug, 277143-1, AMP
Ring terminal & Spade terminal, Rectangular tongue, 0000 AWG Wire size, 100-125 mm² Wire size, 190000-231000 CMA Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rectangular contact tab with hole | |
| Cable cross-section | 100-125 mm² | |
| Isolated | No | |
| Material | copper, tin-plated | |
| shrinkable tubing | No | |
| Hole diameter | 8.3 mm | |
| Thread size | M8 | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
