2-35273-2 | AMP

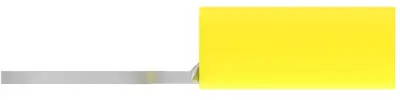

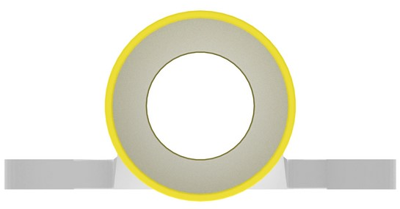

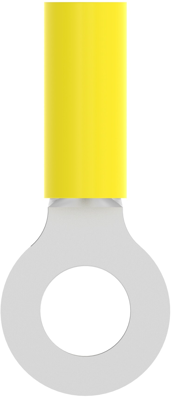

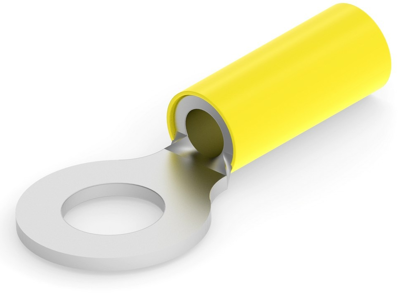

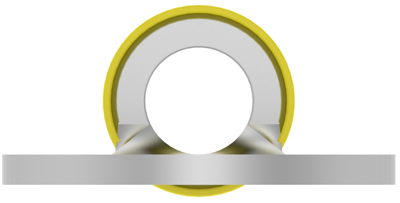

Insulated ring cable lug, 2.26-6.64 mm², AWG 12 to 10, 6.73 mm, M6, yellow, 2-35273-2
Unit Price (€ / pc.)
1.2852 € *
Available in 5 Days: 2,500 pcs. - if ordered today
Cable lug, 2-35273-2, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 2.795 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.26 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Material Insulation | PA | |
| Isolated | Yes | |
| max. operating temperature | 105 °C | |
| Material | copper, tin-plated | |
| Colour | yellow | |
| AWG cross-section | AWG 12 to 10 | |
| Version | ring cable lug | |
| Hole diameter | 6.73 mm | |
| Cable cross-section | 2.26-6.64 mm² | |
| Thread size | M6 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
