2-34852-1 | AMP
Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 3.68 mm, M3.5, yellow, 2-34852-1
Unit Price (€ / pc.)
0.5236 € *
Available in 5 Days: 10,000 pcs. - if ordered today

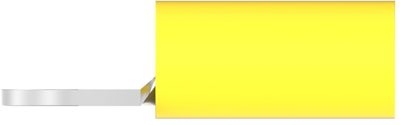

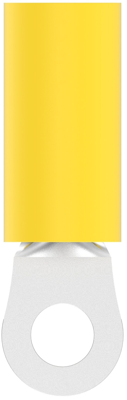

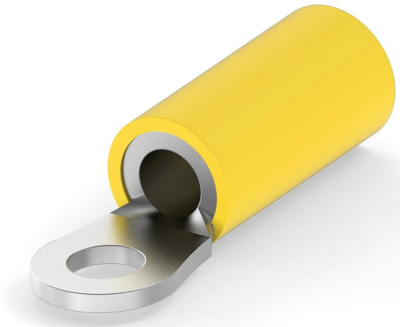

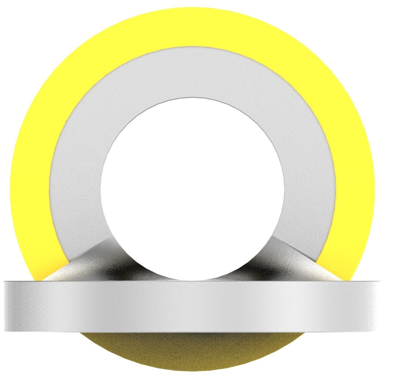

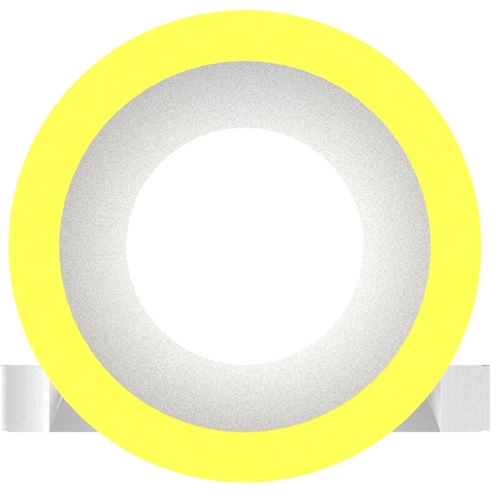

Ring cable lug, 2-34852-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 7.651 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | yellow | |
| Hole diameter | 3.68 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 2.62-6.64 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | vinyl | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
