2-34541-1 | AMP

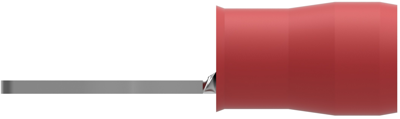

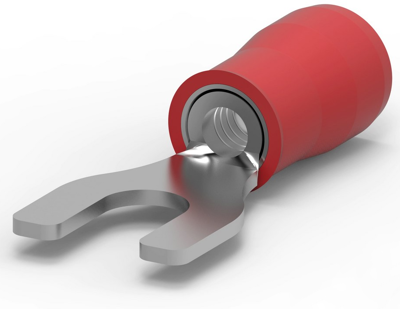

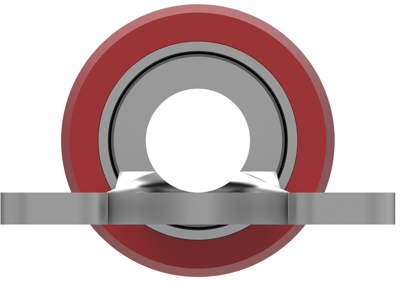

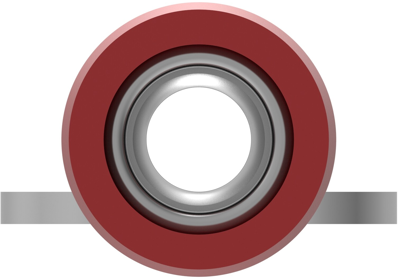

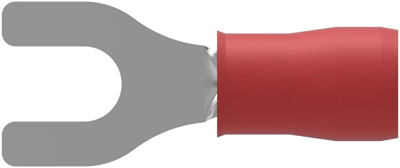

Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.68 mm, M3.5, red, 2-34541-1
Unit Price (€ / pc.)
0.2178 € *
Standard delivery time from the manufacturer is: 45 Weeks
Spade tongue terminal, 2-34541-1, AMP
Spade tongue terminal, Wire size: 22 - 16 AWG, Wire size: 0.3 - 1.42 mm², Wire size: 509 - 3260 CMA, Stud size: 6, M3.5, Body style: PIDG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Colour | red | |
| Hole diameter | 3.68 mm | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
