2-342185-1 | AMP

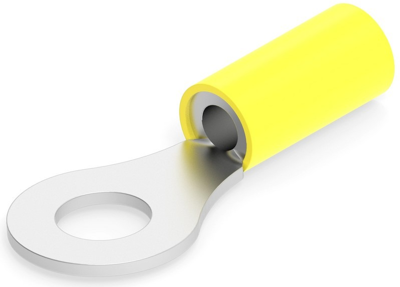

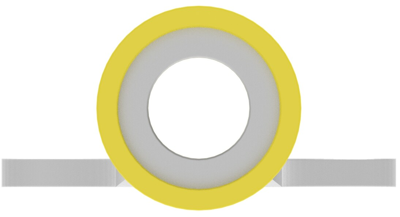

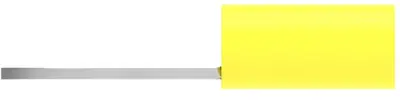

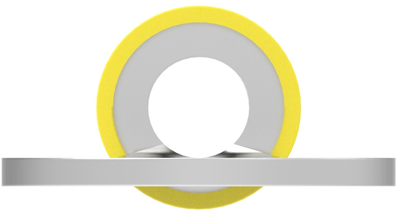

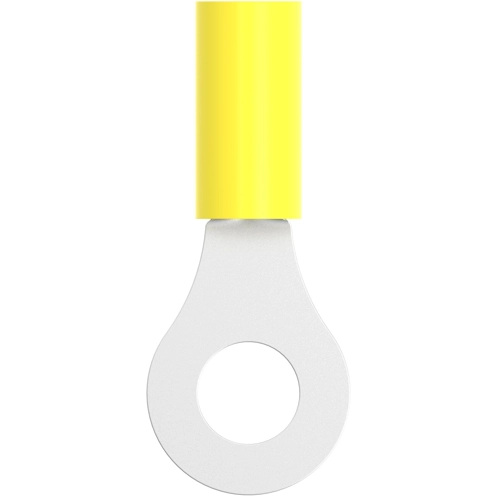

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 6.7 mm, M6, yellow, 2-342185-1
Order No.: 39P4104
EAN: 4099889598292
MPN:
2-342185-1
Unit Price (€ / pc.)
0.7616 € *
Standard delivery time from the manufacturer is: 41 Weeks
Cable lug, 2-342185-1, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Stud Diameter: 6.7 mm, Tongue Thickness: .79 mm, Ring & Spade Overall Length: 34.1 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 6.7 mm | |
| Colour | yellow | |
| Thread size | M6 | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 3.0-6.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
