2-34176-1 | AMP

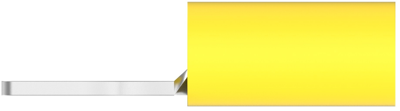

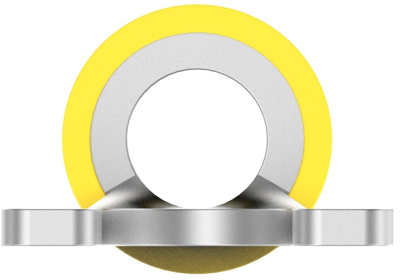

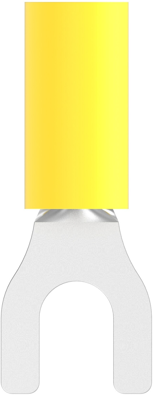

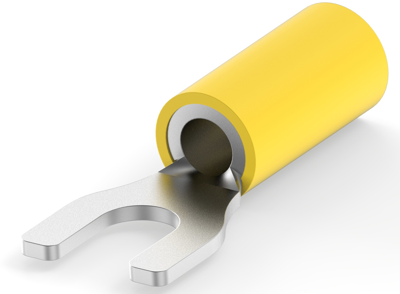

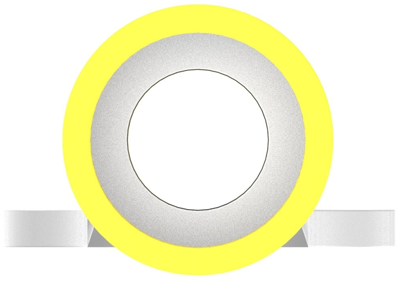

Insulated forked cable lug, 2.62-5.64 mm², AWG 12 to 10, 5 mm, yellow, 2-34176-1
Unit Price (€ / pc.)
0.7735 € *
Standard delivery time from the manufacturer is: 43 Weeks
Fork cable lug, 2-34176-1, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: .395 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 5.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 12 to 10 | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 2.62-5.64 mm² | |
| Colour | yellow | |
| Hole diameter | 5 mm | |
| Material Insulation | vinyl | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
