2-34151-1 | AMP

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 8.33 mm, M8, red, 2-34151-1

Order No.: 39P3939
EAN: 4099889596977
MPN:
2-34151-1
Series: PLASTI-GRIP

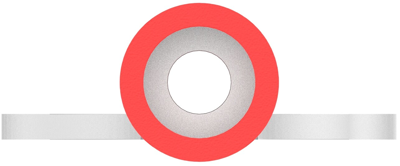

2-34151-1 AMP Cable Lugs Image 1

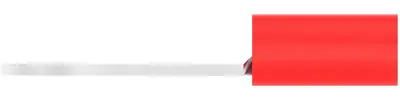

2-34151-1 AMP Cable Lugs Image 2

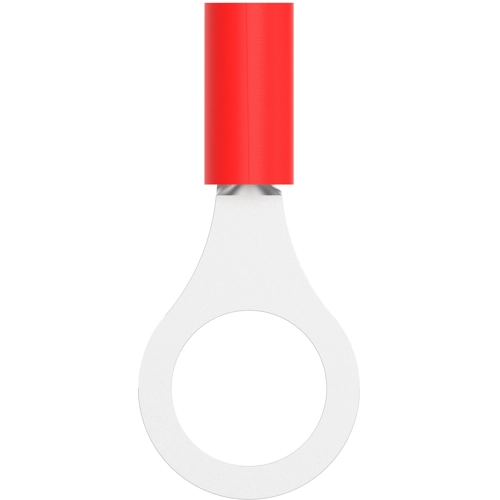

2-34151-1 AMP Cable Lugs Image 3

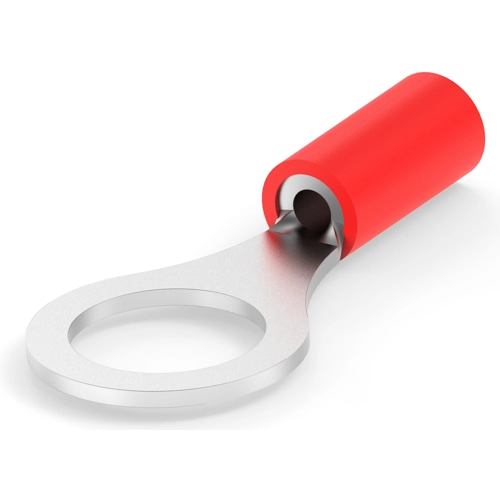

2-34151-1 AMP Cable Lugs Image 4
2-34151-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available in 5 Days: 21,785 pcs. - if ordered today
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7854 €
10 pcs.
0.7259 €
25 pcs.
0.6783 €
50 pcs.
0.6188 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 2-34151-1, AMP

Shape Description: RING-043, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: .932 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 22 to 16
Version ring cable lug
Isolated Yes
Cable cross-section 0.26-1.65 mm²
Colour red
Hole diameter 8.33 mm
Material Insulation vinyl
max. operating temperature 105 °C
Thread size M8
Logistics
Property Value
Country of origin KR
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
