2-34124-1 | AMP

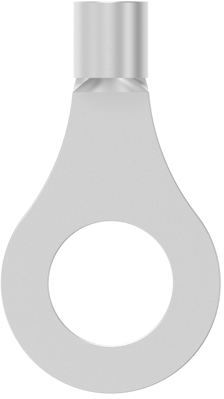

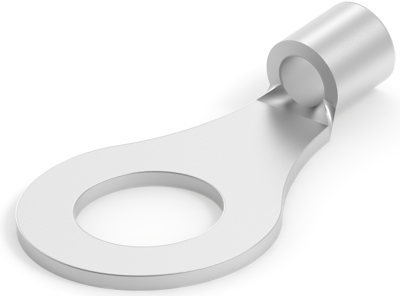

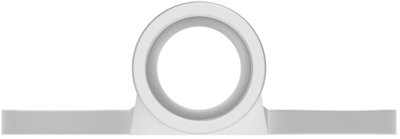

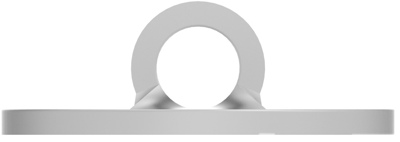

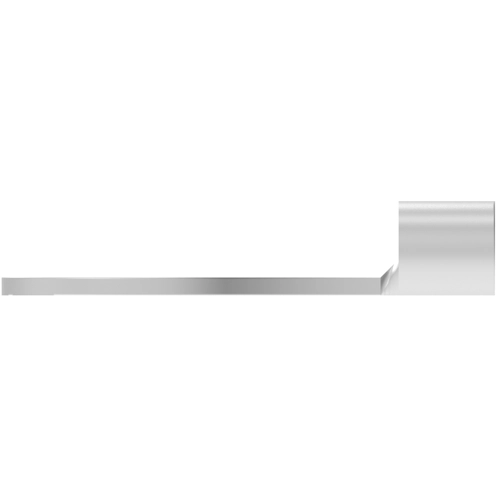

Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 6.35 mm, M6, metal, 2-34124-1
Order No.: 39P8451
EAN: 4099889601565
MPN:
2-34124-1
Unit Price (€ / pc.)
0.357 € *
Available in 5 Days: 6,568 pcs. - if ordered today
Cable lug, 2-34124-1, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.492 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 1.25-2.0 mm² | |
| max. operating temperature | 170 °C | |
| Isolated | No | |
| Hole diameter | 6.35 mm | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | metal | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
