2-33459-6 | AMP

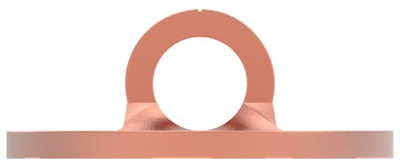

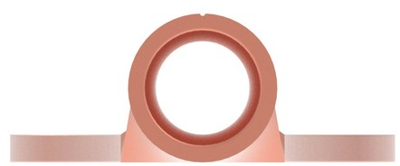

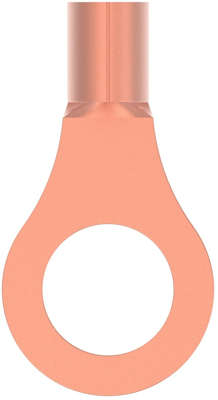

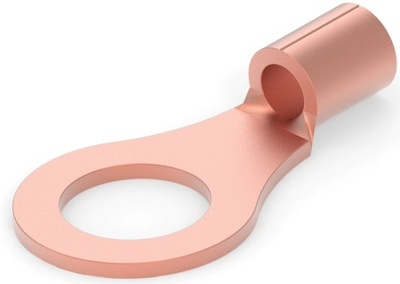

Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 7.92 mm, M8, 2-33459-6
Order No.: 39P8446
EAN: 4099889601527
MPN:
2-33459-6
Unit Price (€ / pc.)
0.9163 € *
Available in 5 Days: 15,000 pcs. - if ordered today
Total Price:
2,290.75 € *
Price list
Quantity
Price per unit*
2500 pcs.
0.9163 €
5000 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 2-33459-6, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.356 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Cable cross-section | 3.0-6.0 mm² | |
| AWG cross-section | AWG 12 to 10 | |
| max. operating temperature | 170 °C | |
| Thread size | M8 | |
| Hole diameter | 7.92 mm | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
