2-328975-1 | AMP
Insulated ring cable lug, 0.38 mm², AWG 22, 13.08 mm, M12, red, 2-328975-1
Unit Price (€ / pc.)
1.7017 € *
Available in 5 Days: 5,301 pcs. - if ordered today
Total Price:
255.26 € *
Price list
Quantity
Price per unit*
150 pcs.
1.7017 €
300 pcs.
1.6660 €
*incl. VAT plus shipping costs
Subject to prior sale

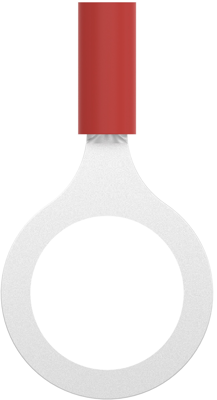

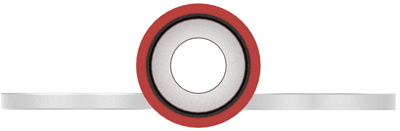

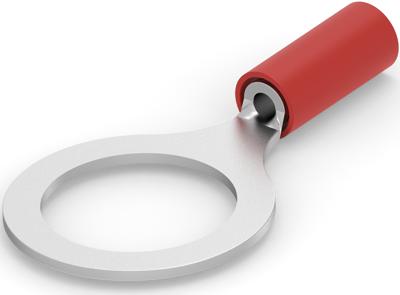

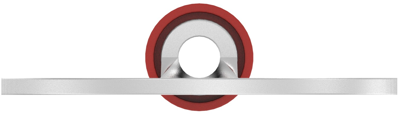

Ring cable lug, 2-328975-1, AMP
Ring terminal, Ring tongue, 22 AWG Wire size, 0.38 mm² Wire size, 754 CMA Wire size, Stud size M12.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| Version | ring cable lug | |
| shrinkable tubing | Yes | |
| Colour | red | |
| Cable cross-section | 0.38 mm² | |
| Thread size | M12 | |
| Isolated | Yes | |
| AWG cross-section | AWG 22 | |
| Hole diameter | 13.08 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
