2-328527-1 | AMP

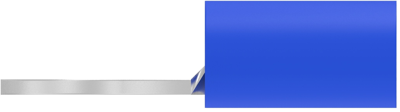

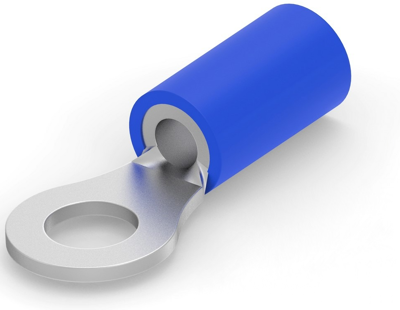

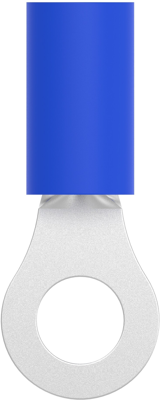

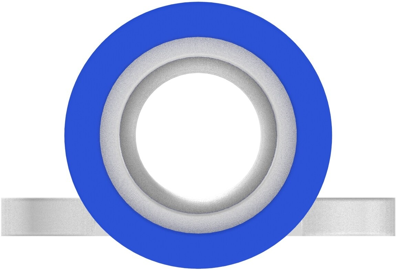

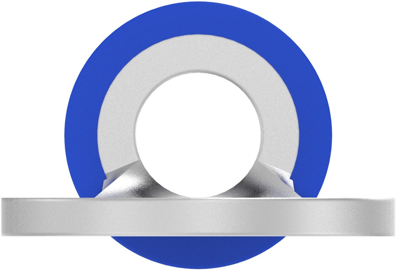

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 4.34 mm, M4, blue, 2-328527-1
Unit Price (€ / pc.)
0.4760 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.38 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4760 €
10 pcs.
0.4403 €
25 pcs.
0.4165 €
50 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 2-328527-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 1.04-2.62 mm² | |
| Colour | blue | |
| Hole diameter | 4.34 mm | |
| Material Insulation | PVC | |
| max. operating temperature | 105 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
