2-327958-4 | AMP

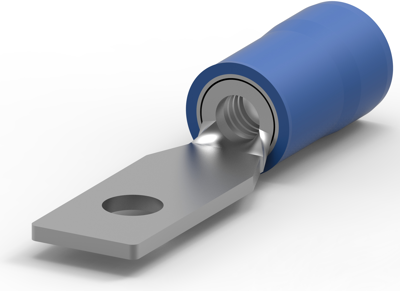

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 3.73 mm, M3.5, blue, 2-327958-4
Unit Price (€ / pc.)
1.2495 € *
Available: 0 pcs.
Leadtime: 45 Weeks **
Total Price:
1.25 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2495 €
10 pcs.
1.1186 €
50 pcs.
1.0115 €
100 pcs.
0.9044 €
*incl. VAT plus shipping costs
**Subject to prior sale
Rings and Spades, 2-327958-4, AMP
Shape Description: RING-055, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.164 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Rectangular Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Hole diameter | 3.73 mm | |
| AWG cross-section | AWG 16 to 14 | |
| Cable cross-section | 1.04-2.62 mm² | |
| max. operating temperature | 105 °C | |
| Colour | blue | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Thread size | M3.5 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | CH |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
