2-326859-1 | AMP

Insulated forked cable lug, 2.62-6.64 mm², AWG 12 to 10, 3.68 mm, M3.5, yellow, 2-326859-1

Order No.: 39P3312
EAN: 4099889592344
MPN:
2-326859-1
Series: PIDG

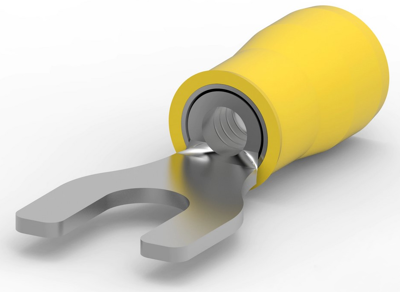

2-326859-1 AMP Cable Lugs Image 1

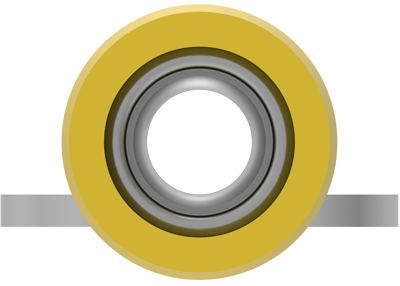

2-326859-1 AMP Cable Lugs Image 2

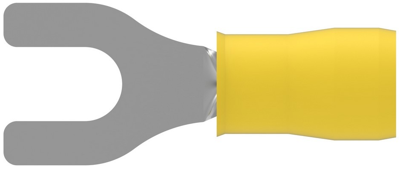

2-326859-1 AMP Cable Lugs Image 3

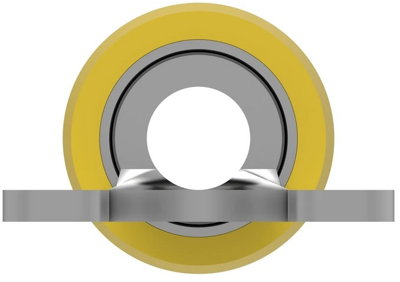

2-326859-1 AMP Cable Lugs Image 4

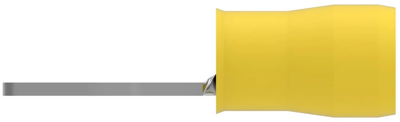

2-326859-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available in 5 Days: 2,169 pcs. - if ordered today
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.7021 €
50 pcs.
0.6307 €
100 pcs.
0.5712 €
*incl. VAT plus shipping costs
Subject to prior sale

Fork cable lug, 2-326859-1, AMP

Shape Description: SPADE-020, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 2.373 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Version forked cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 2.62-6.64 mm²
AWG cross-section AWG 12 to 10
Material copper, tin-plated
Hole diameter 3.68 mm
Isolated Yes
Material Insulation PA
Thread size M3.5
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
