2-323916-3 | AMP

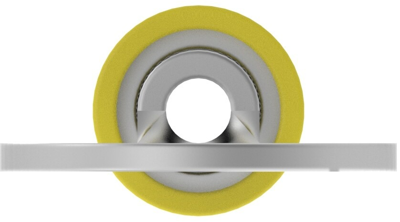

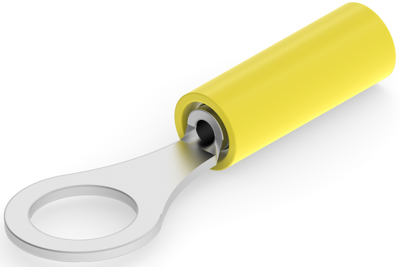

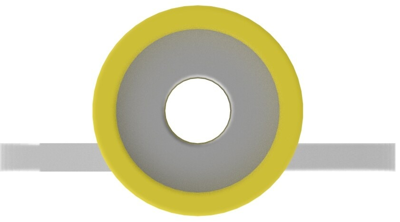

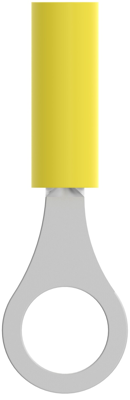

Insulated ring cable lug, 0.1-0.41 mm², AWG 24, 4.34 mm, M4, yellow, 2-323916-3
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Available in 5 Days: 10,824 pcs.
Leadtime: 40 Weeks **
Total Price:
2.80 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7965 €
10 pcs.
2.5823 €
50 pcs.
2.3205 €
100 pcs.
2.0825 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 2-323916-3, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .468 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 24 AWG, Wire Size: .1 – .41 mm², Wire Size: 475 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | yellow | |
| Isolated | Yes | |
| AWG cross-section | AWG 24 | |
| Hole diameter | 4.34 mm | |
| Cable cross-section | 0.1-0.41 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Thread size | M4 |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
