2-323916-1 | AMP

Insulated ring cable lug, 0.1-0.41 mm², AWG 26 to 22, 4.34 mm, M4, yellow, 2-323916-1

Order No.: 39P3311
EAN: 4099889592337
MPN:
2-323916-1
Series: PIDG

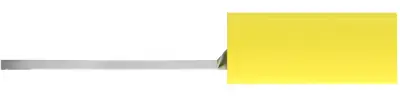

2-323916-1 AMP Cable Lugs Image 1

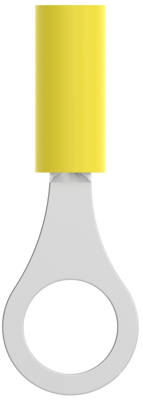

2-323916-1 AMP Cable Lugs Image 2

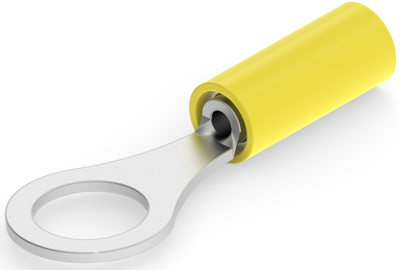

2-323916-1 AMP Cable Lugs Image 3

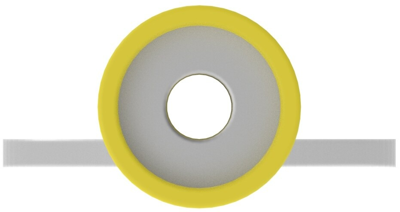

2-323916-1 AMP Cable Lugs Image 4

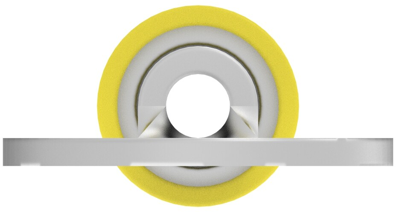

2-323916-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available in 5 Days: 6,263 pcs. - if ordered today
Total Price:
0.88 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8806 €
10 pcs.
0.8092 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 2-323916-1, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 0.301 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: 0.1 -0.41 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 4000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 0.1-0.41 mm²
AWG cross-section AWG 26 to 22
Material copper, tin-plated
Hole diameter 4.34 mm
Isolated Yes
Material Insulation PA
Thread size M4
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
