2-323682-1 | AMP

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 3.68 mm, M6, yellow, 2-323682-1

Order No.: 39P3305
EAN: 4099889592306
MPN:
2-323682-1
Series: PIDG

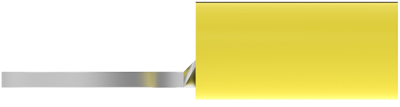

2-323682-1 AMP Cable Lugs Image 1

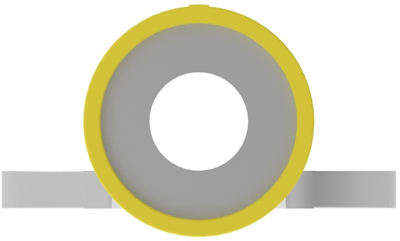

2-323682-1 AMP Cable Lugs Image 2

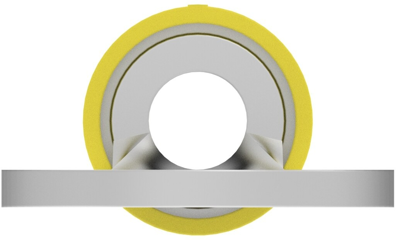

2-323682-1 AMP Cable Lugs Image 3

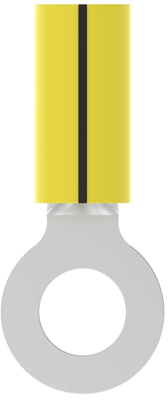

2-323682-1 AMP Cable Lugs Image 4
2-323682-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.7489 € *
Available in 5 Days: 1,150 pcs. - if ordered today
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7489 €
10 pcs.
2.5466 €
25 pcs.
2.3800 €
50 pcs.
2.1658 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring tongue terminal, 2-323682-1, AMP

Ring tongue terminal, Wire size: 16 - 14 AWG, Wire size: 1.04 - 2.62 mm², Wire size: 2050 - 5180 CMA, Stud size: 1/4, M6

Technical specifications
Filter Property Value
Material Insulation PA
Isolated Yes
Version ring cable lug
max. operating temperature 105 °C
Colour yellow
Hole diameter 3.68 mm
AWG cross-section AWG 16 to 14
Thread size M6
Material copper, tin-plated
Cable cross-section 1.04-2.62 mm²
Logistics
Property Value
Country of origin CZ
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
