2-322873-1 | AMP

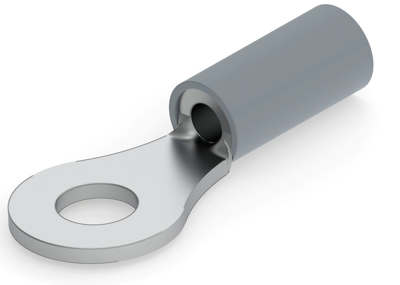

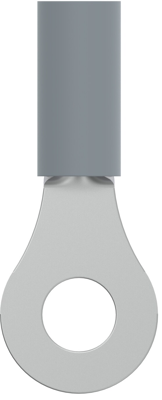

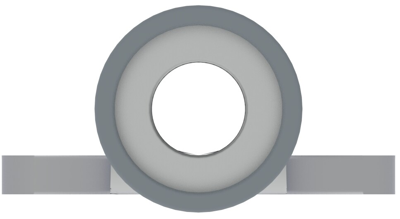

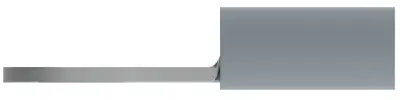

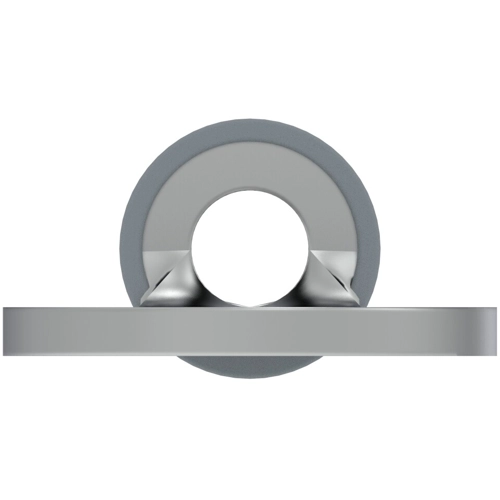

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.68 mm, M3.5, gray, 2-322873-1
Order No.: 39P2197
EAN: 4099889590746
MPN:
2-322873-1
Unit Price (€ / pc.)
3.2725 € *
Available in 5 Days: 11,254 pcs. - if ordered today
Total Price:
212.71 € *
Price list
Quantity
Price per unit*
65 pcs.
3.2725 €
150 pcs.
3.1892 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 2-322873-1, AMP
Shape Description: RING-053, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Gray, Ring & Spade Plating Material: Nickel,Unplated, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Hole diameter | 3.68 mm | |
| Colour | gray | |
| Thread size | M3.5 | |
| max. operating temperature | 649 °C | |
| Cable cross-section | 0.26-1.65 mm² | |
| Material | nickel | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
