2-32186-7 | AMP
Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.68 mm, M3.5, metal, 2-32186-7
Order No.: 39P8312
EAN: 4099889600667
MPN:
2-32186-7
Unit Price (€ / pc.)
0.1952 € *
Standard delivery time from the manufacturer is: 33 Weeks

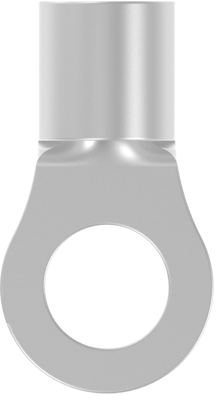

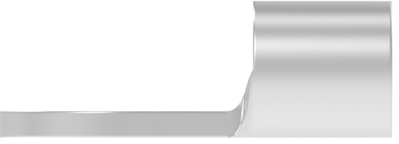

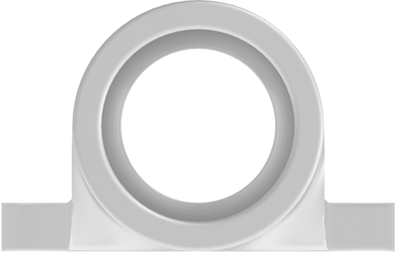

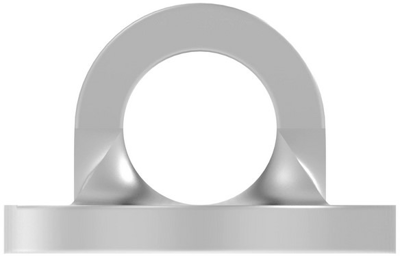

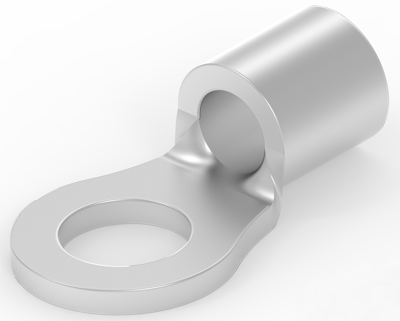

Ring cable lug, 2-32186-7, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.649 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 3.68 mm | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 1.25-2.0 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 16 to 14 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
