2-320862-1 | AMP

Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, M4, blue, 2-320862-1

Order No.: 39P3904
EAN: 4099889596885
MPN:
2-320862-1
Series: PIDG

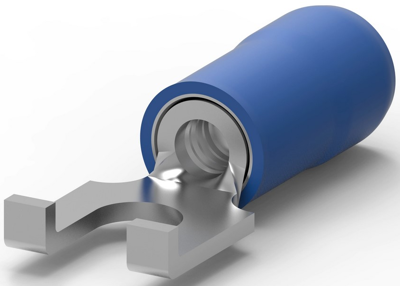

2-320862-1 AMP Cable Lugs Image 1

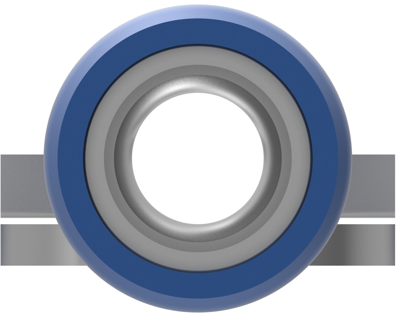

2-320862-1 AMP Cable Lugs Image 2

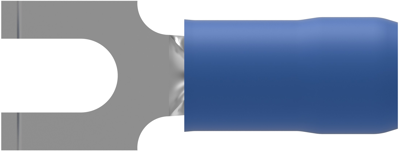

2-320862-1 AMP Cable Lugs Image 3

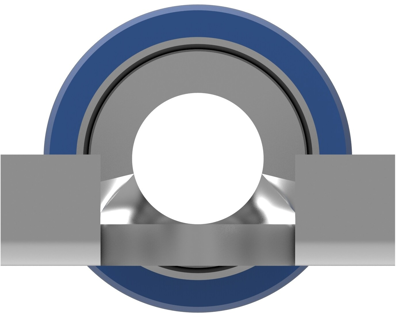

2-320862-1 AMP Cable Lugs Image 4

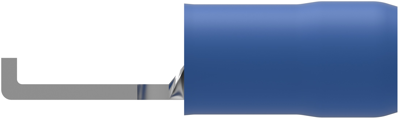

2-320862-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.8330 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
0.83 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8330 €
10 pcs.
0.7497 €
50 pcs.
0.6783 €
100 pcs.
0.6069 €
*incl. VAT plus shipping costs
**Subject to prior sale

Fork cable lug, 2-320862-1, AMP

Shape Description: SPADE-024, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .97 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Colour blue
Isolated Yes
AWG cross-section AWG 16 to 14
Cable cross-section 1.25-2.0 mm²
Version forked cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation PA
Thread size M4
Logistics
Country of origin IT
Customs tariff number 85369040
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
