2-320577-2 | AMP
Insulated ring cable lug, 6.11 mm², AWG 10, 9.53 mm, yellow, 2-320577-2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
5.1527 € *
Available in 12 Days: 55 pcs. - if ordered today
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7838 €
25 pcs.
4.4625 €
50 pcs.
4.0579 €
*incl. VAT plus shipping costs
Subject to prior sale

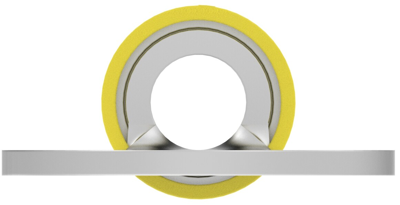

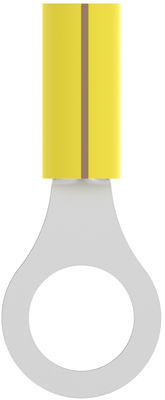

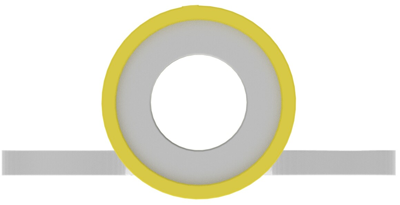

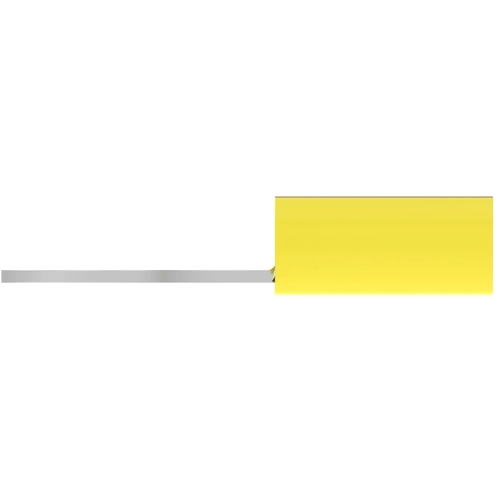

Ring cable lug, 2-320577-2, AMP
Ring terminal, Ring tongue, 10 AWG Wire size, 6.11 mm² Wire size, 12066 CMA Wire size, Stud size 3/8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 6.11 mm² | |
| AWG cross-section | AWG 10 | |
| Isolated | Yes | |
| Colour | yellow | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| shrinkable tubing | Yes | |
| Hole diameter | 9.53 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
