2-320575-2 | AMP

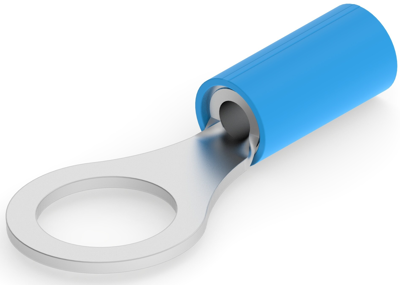

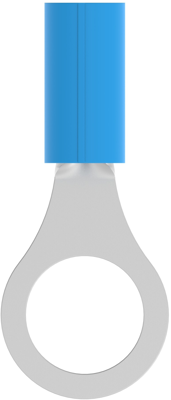

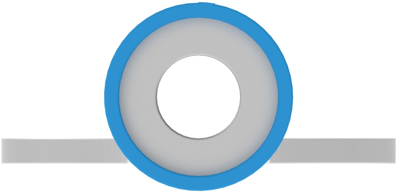

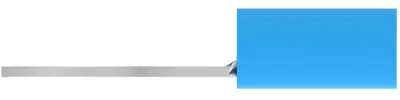

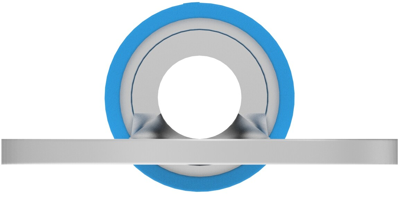

Insulated ring cable lug, 1.25-1.4 mm², AWG 16, 7.92 mm, M8, blue
Unit Price (€ / pc.)
0.833 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Cable lug, 2-320575-2, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.25 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 1.25 – 1.4 mm², Wire Size: 2800 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 16 | |
| Colour | blue | |
| Thread size | M8 | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 1.25-1.4 mm² | |
| Hole diameter | 7.92 mm | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
