2-320573-4 | AMP

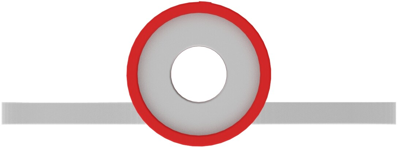

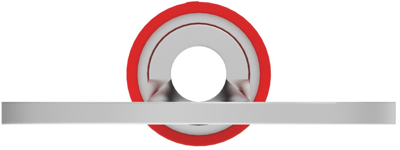

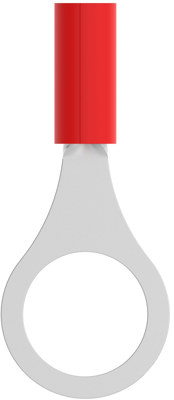

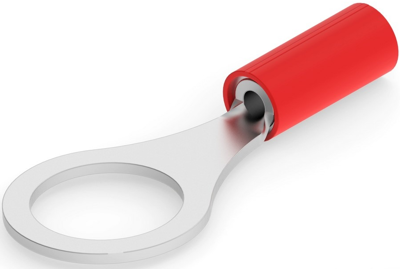

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 9.91 mm, red, 2-320573-4
Unit Price (€ / pc.)
0.6545 € *
Available in 5 Days: 8,254 pcs. - if ordered today
Ring cable lug, 2-320573-4, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 2.827 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 9.53 mm,9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| Version | ring cable lug | |
| Hole diameter | 9.91 mm | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Colour | red | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
