2-320572-4 | AMP

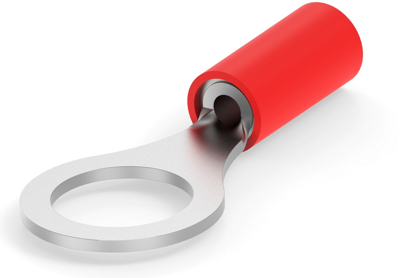

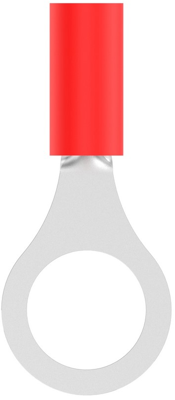

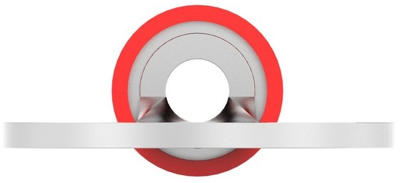

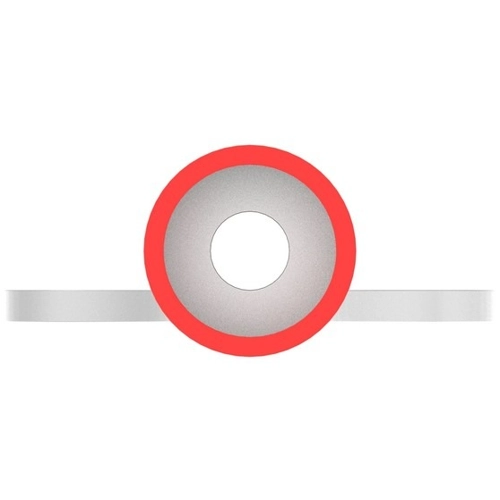

Insulated ring cable lug, 0.8-0.9 mm², AWG 18, 7.92 mm, M8, red, 2-320572-4
Unit Price (€ / pc.)
1.6303 € *
Available in 5 Days: 3,750 pcs. - if ordered today
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6303 €
10 pcs.
1.5113 €
25 pcs.
1.4042 €
50 pcs.
1.2852 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 2-320572-4, AMP
Shape Description: RING-042, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.085 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 18 AWG, Wire Size: .8 – .9 mm², Wire Size: 1900 CMA, Stud Diameter: 7.92 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Version | ring cable lug | |
| Hole diameter | 7.92 mm | |
| Thread size | M8 | |
| Isolated | Yes | |
| AWG cross-section | AWG 18 | |
| Colour | red | |
| Cable cross-section | 0.8-0.9 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
