2-320569-5 | AMP

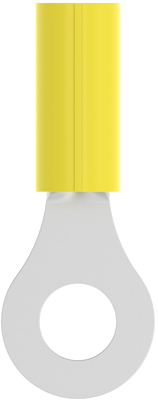

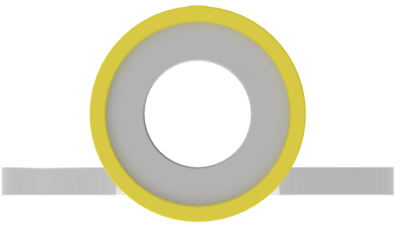

Insulated ring cable lug, 3.0-6.0 mm², AWG 12, 6.73 mm, M6, yellow, 2-320569-5
Unit Price (€ / pc.)
3.5462 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
3.55 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5462 €
10 pcs.
3.2606 €
50 pcs.
2.9393 €
100 pcs.
2.6418 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ring cable lug, 2-320569-5, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 AWG, Wire Size: 3 – 6 mm², Wire Size: 6654 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | yellow | |
| Isolated | Yes | |
| AWG cross-section | AWG 12 | |
| Hole diameter | 6.73 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Thread size | M6 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
