2-320568-2 | AMP

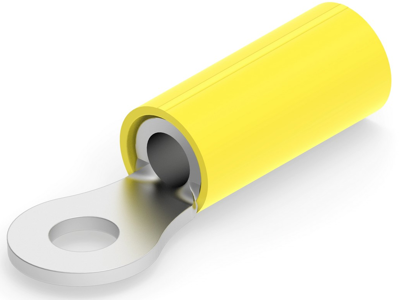

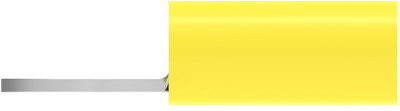

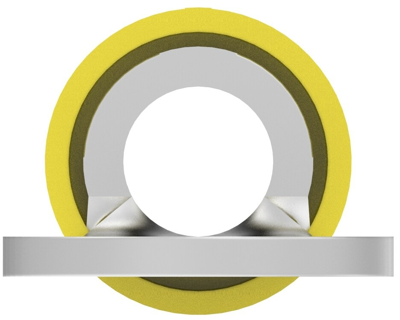

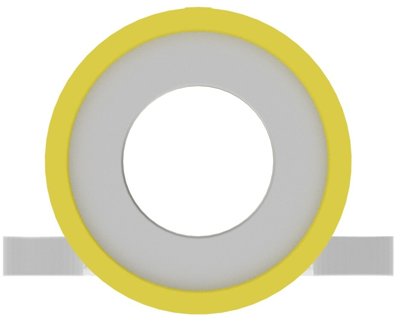

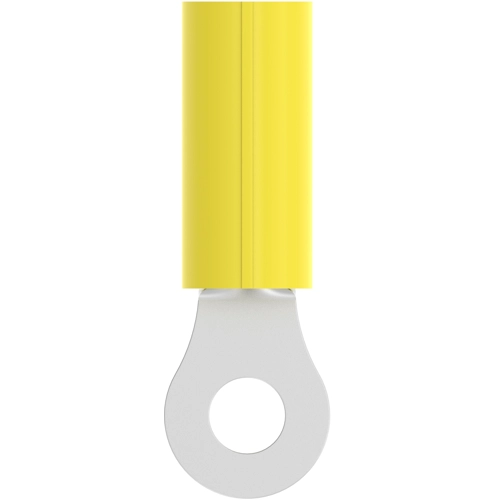

Insulated ring cable lug, 3.0-6.0 mm², AWG 12, 4.17 mm, M4, yellow, 2-320568-2
Unit Price (€ / pc.)
0.6664 € *
Available in 5 Days: 8,481 pcs. - if ordered today
Cable lug, 2-320568-2, AMP
Shape Description: RING-042, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 2.314 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 AWG, Wire Size: 3 – 6 mm², Wire Size: 6654 CMA, Stud Diameter: 4.17 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 3.0-6.0 mm² | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Hole diameter | 4.17 mm | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 12 | |
| Colour | yellow | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
