2-320564-2 | AMP

Insulated ring cable lug, 2.15 mm², AWG 14, 9.53 mm, blue, 2-320564-2

Order No.: 71P6579
EAN: 4099891603274
MPN:
2-320564-2
Series: PIDG

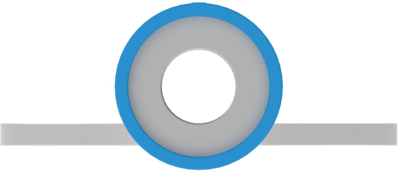

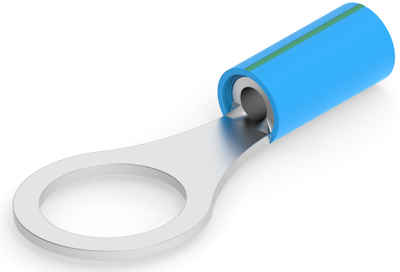

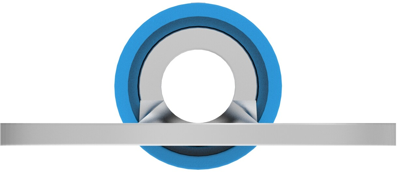

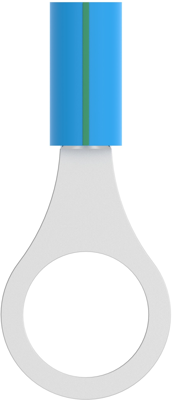

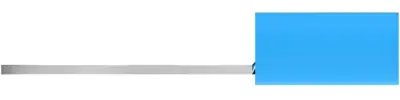

2-320564-2 AMP Cable Lugs Image 1
2-320564-2 AMP Cable Lugs Image 2
2-320564-2 AMP Cable Lugs Image 3
2-320564-2 AMP Cable Lugs Image 4
2-320564-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available in 5 Days: 7,028 pcs. - if ordered today
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
1.0710 €
50 pcs.
0.9639 €
100 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 2-320564-2, AMP

Ring terminal, Ring tongue, 14 AWG Wire size, 2.15 mm² Wire size, 4234 CMA Wire size, Stud size 3/8.

Technical specifications
Colour blue
Isolated Yes
AWG cross-section AWG 14
Hole diameter 9.53 mm
Cable cross-section 2.15 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Material Insulation PA
Logistics
Country of origin US
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
