2-320561-2 | AMP

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.68 mm, M3.5, blue, 2-320561-2

Order No.: 39P3296
EAN: 4099889592221
MPN:
2-320561-2
Series: PIDG

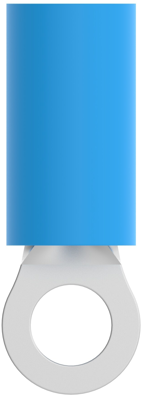

2-320561-2 AMP Cable Lugs Image 1

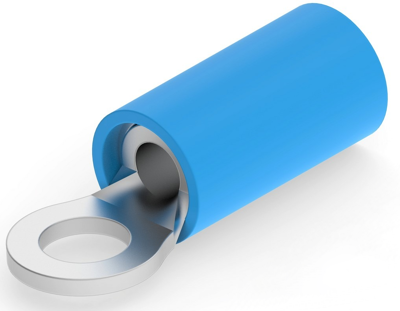

2-320561-2 AMP Cable Lugs Image 2

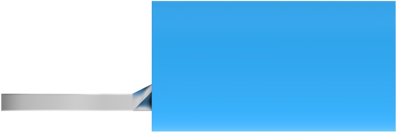

2-320561-2 AMP Cable Lugs Image 3

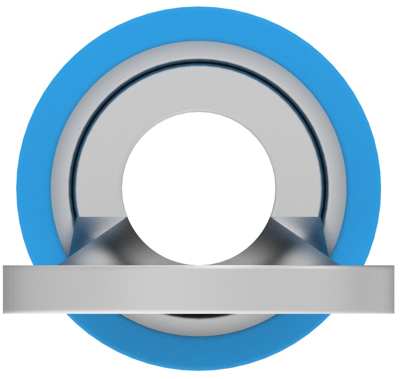

2-320561-2 AMP Cable Lugs Image 4
2-320561-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2713 € *
Available in 5 Days: 22,542 pcs. - if ordered today
Total Price:
1,356.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2713 €

Cable lug, 2-320561-2, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .826 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Version ring cable lug
Cable cross-section 1.25-2.0 mm²
max. operating temperature 105 °C
Material Insulation PA
Isolated Yes
Hole diameter 3.68 mm
Material copper, tin-plated
AWG cross-section AWG 16 to 14
Colour blue
Thread size M3.5
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
