2-31894-2 | AMP

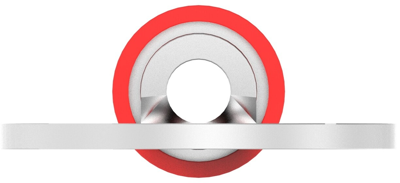

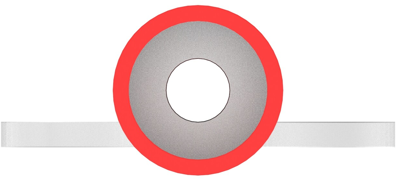

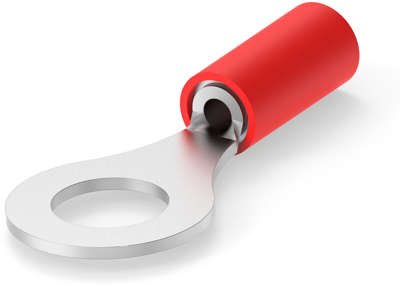

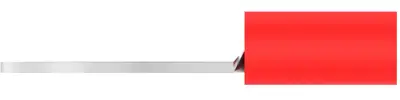

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 6.73 mm, M6, red, 2-31894-2
Unit Price (€ / pc.)
0.2440 € *
Available in 5 Days: 70,000 pcs. - if ordered today
Ring cable lug, 2-31894-2, AMP
Shape Description: RING-041, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.48 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Hole diameter | 6.73 mm | |
| Cable cross-section | 0.3-1.42 mm² | |
| Thread size | M6 | |
| AWG cross-section | AWG 22 to 16 | |
| Isolated | Yes | |
| max. operating temperature | 105 °C | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Colour | red | |
| Material Insulation | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
