184068-1 | AMP

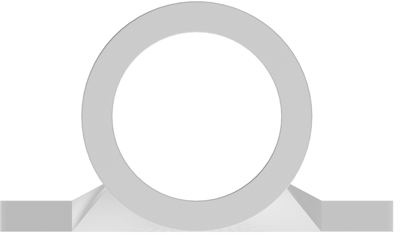

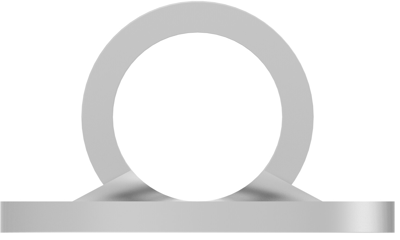

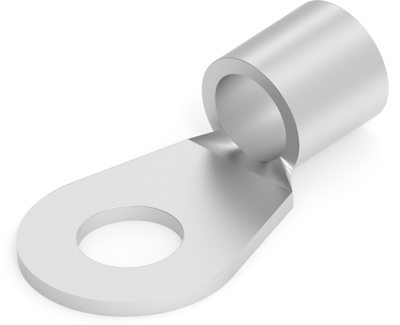

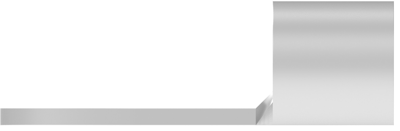

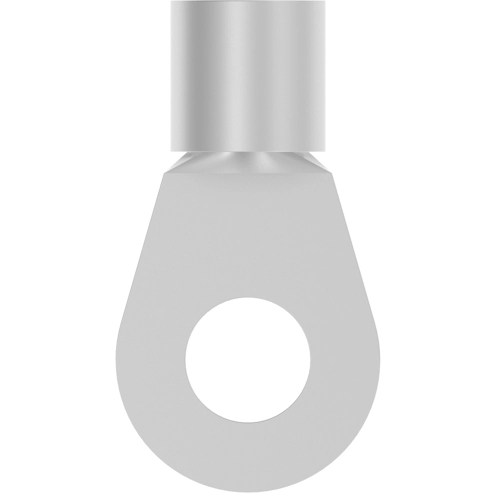

Uninsulated ring cable lug, 34-35 mm², AWG 2, 10 mm, M10, metal, 184068-1
Order No.: 39P8244
EAN: 4099889600209
MPN:
184068-1
Unit Price (€ / pc.)
2.9393 € *
Standard delivery time from the manufacturer is: 39 Weeks
Ring cable lug, 184068-1, AMP
Shape Description: RING-054, Ring & Spade Stud Size: M10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 10 mm,10.5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 2 | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 34-35 mm² | |
| Colour | metal | |
| Hole diameter | 10 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
