171508-8 | AMP

Insulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 5.3 mm, M5, red, 171508-8

Order No.: 71P3172
EAN: 4099891603052
MPN:
171508-8
Series: PIDG

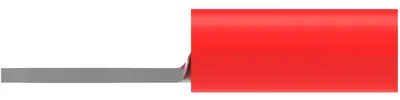

171508-8 AMP Cable Lugs Image 1

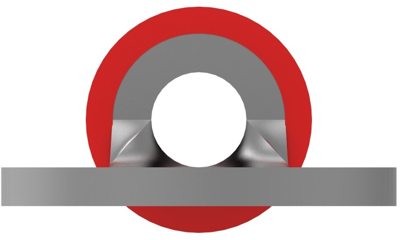

171508-8 AMP Cable Lugs Image 2

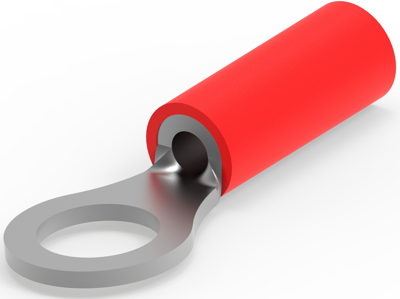

171508-8 AMP Cable Lugs Image 3

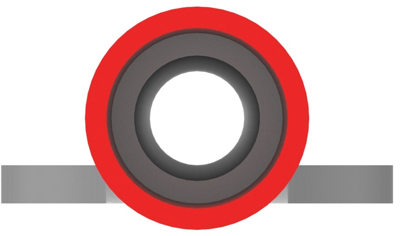

171508-8 AMP Cable Lugs Image 4

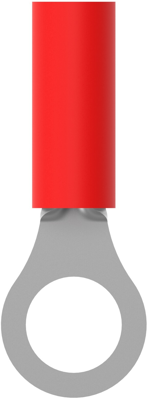

171508-8 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 9,927 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.6069 €
50 pcs.
0.5474 €
100 pcs.
0.4760 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 171508-8, AMP

Ring terminal, Ring tongue, 22-16 AWG Wire size, 0.3-1.42 mm² Wire size, 509-3260 CMA Wire size, Stud size M5.

Technical specifications
Colour red
Isolated Yes
AWG cross-section AWG 22 to 16
Hole diameter 5.3 mm
Cable cross-section 0.3-1.42 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Thread size M5
Logistics
Country of origin JP
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
