171507-2 | AMP

Insulated ring cable lug, 0.26-1.04 mm², AWG 22 to 18, 8.3 mm, M8, red, 171507-2

Order No.: 71P3171
EAN: 4099891603045
MPN:
171507-2
Series: PIDG

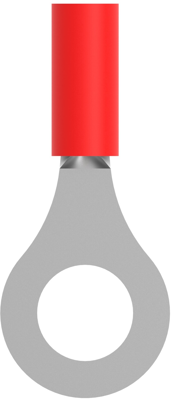

171507-2 AMP Cable Lugs Image 1

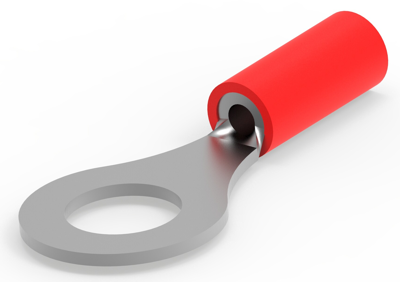

171507-2 AMP Cable Lugs Image 2

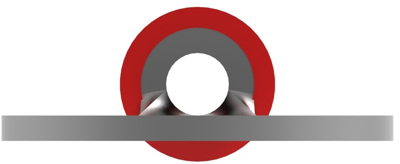

171507-2 AMP Cable Lugs Image 3

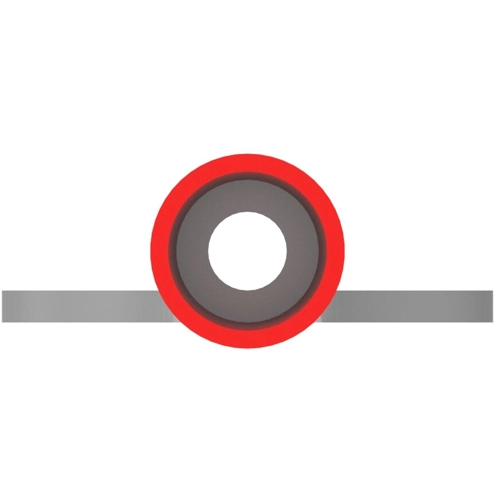

171507-2 AMP Cable Lugs Image 4
171507-2 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available in 5 Days: 10,448 pcs. - if ordered today
Total Price:
2.48 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4752 €
10 pcs.
2.2967 €
25 pcs.
2.1420 €
50 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 171507-2, AMP

Ring terminal, Ring tongue, 22-18 AWG Wire size, 0.26-1.04 mm² Wire size, 509-3260 CMA Wire size, Stud size 5/16/M8.

Technical specifications
Filter Property Value
shrinkable tubing Yes
Material Insulation PVC
Material copper, tin-plated
max. operating temperature 105 °C
Version ring cable lug
Hole diameter 8.3 mm
Thread size M8
Isolated Yes
AWG cross-section AWG 22 to 18
Colour red
Cable cross-section 0.26-1.04 mm²
Logistics
Property Value
Country of origin JP
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
